Medical Education, Training, and Simulation Products
ECMO – Simulation Kit
The ECMO simulation kit takes your training to a new level. Using the 3-Dmed’s ECMO neck pad provides a realistic experience when training for the ECMO procedure. The surgeon has an active part in the simulation experience. The ECMO neck pad allows for a surgical incision, cannulation of vessels and connection to the ECMO machine for artificial blood transference through the machine.
3-Dmed developed the ECMO neck pad in collaboration with Cincinnati Children’s Hospital Medical Center.
To see a practice session click the video tab below.

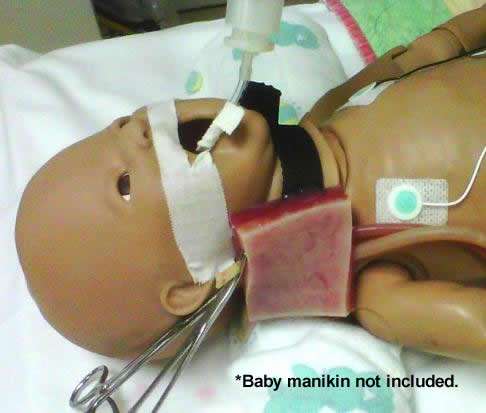

The realistic neck pad mounts to your patient with a hook and loop strap. An incision can be made in the pad to expose the vein and artery. The vessels are connected to tubes and a bladder you fill with fluid that is mounted under the patient platform. The platform is made of a durable plastic and provides easy clean up.
To further enhance simulation use the CLR EigenFlow ECMO Simulator with 3-Dmed’s ECMO Simulation Kit. Click here for more information about the EigenFlow ECMO Simulator.

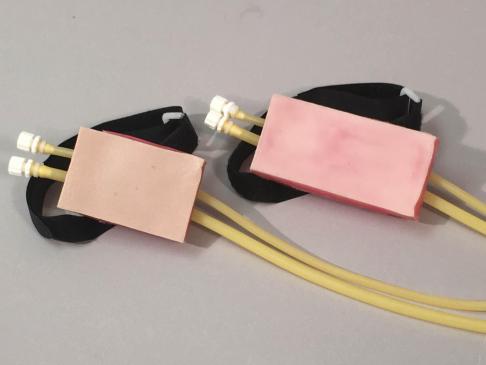

-Infant neck pad (pink) with incorporated vessels -52mm x 75mm, (2″ x 3″) with a skin 8mm thick
– Vessel Inside Diameter: Approximately 3mm and 5mm (1/8″ & 3/16″)

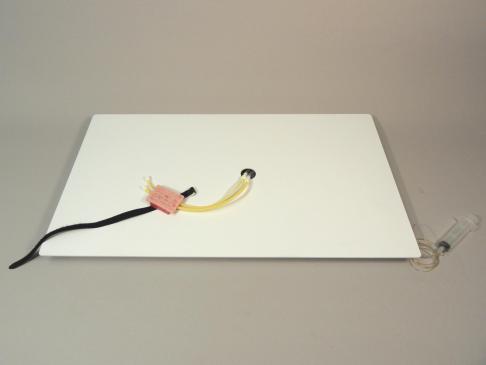

-Patient mannequin mounting platform – 32″ x 18″ x 1.75″, 3 lbs. (82cm x 46cm x 4.5cm, 1.5 kg.)

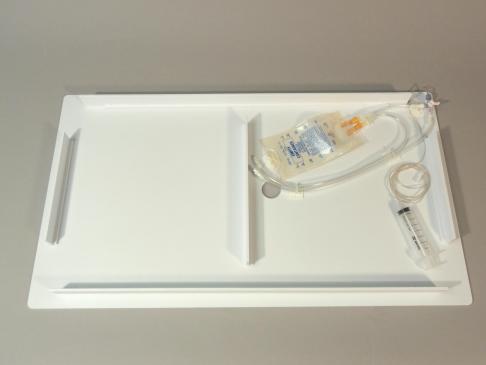

-Bladder and tubes for fluid containment (artificial blood)
-Remote syringe for a creating simulated pulse
Toddler size pad available upon request – 52mm x 102mm, (2″ x 4″) with a skin 8mm thick
-Vessel Inside Diameter: Approximately 3mm and 5mm (1/8″ & 3/16″)
Vessel sizes are the same in both Infant Neck Pad and Toddler Neck Pad.
Suggested cannula sizes are 10 Fr and 14 Fr.
