Medical Education, Training, and Simulation Products
CALL FOR PRICING

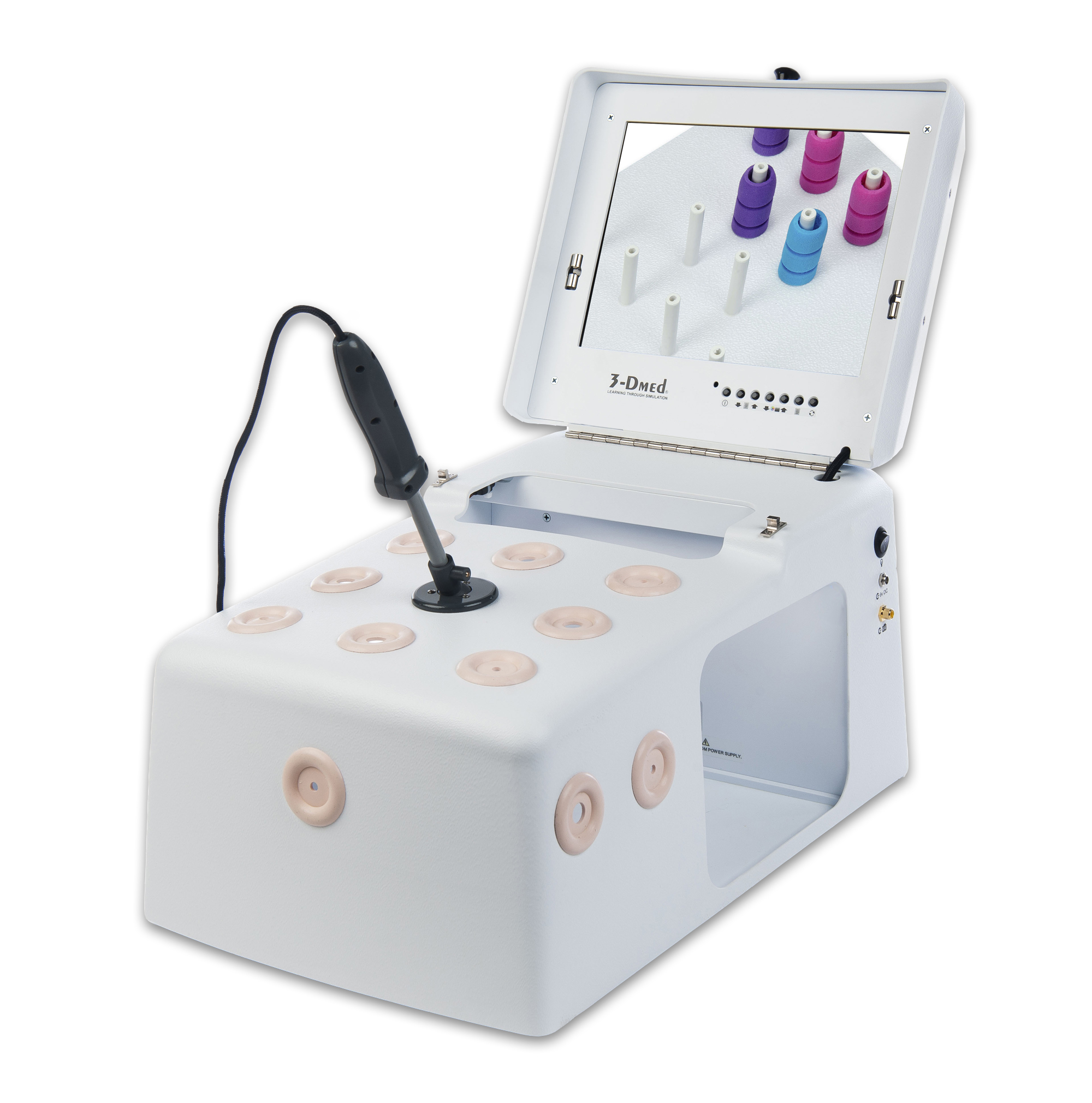

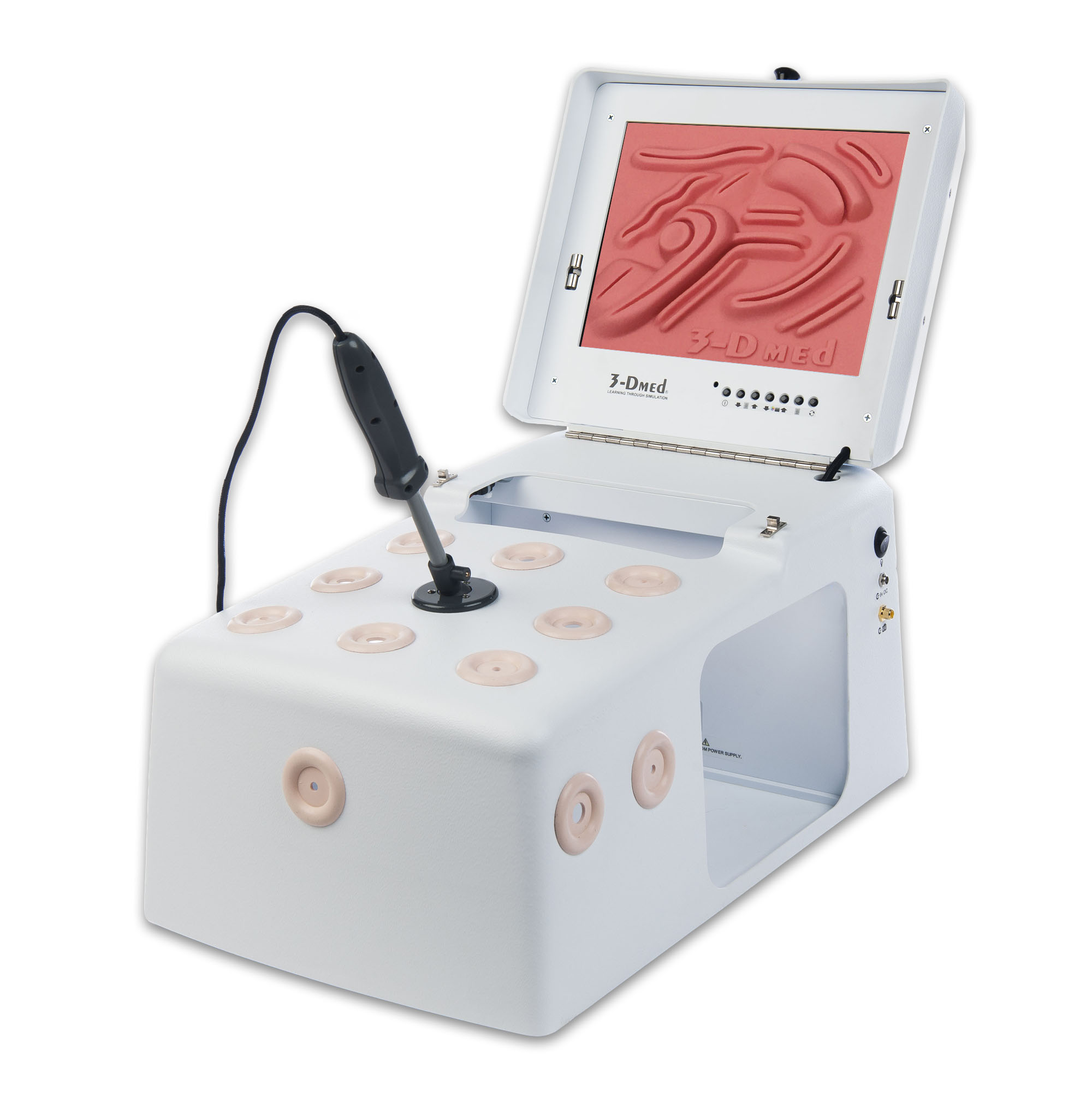

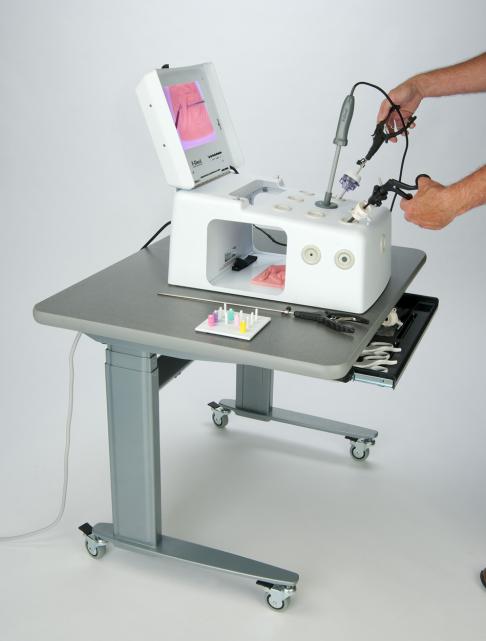

The T5-HD is a complete minimally invasive training system that does not require additional video equipment. This system is simple to set up and portable. It includes the large pelvic work area + High-Definition 1080p SimScope (camera) + 12″ high-resolution monitor. It is versatile as it can be used for basic laparoscopic skills up to advanced procedural training, including camera navigation for an individual or a team.
T5-HD trainer is available for rental. Contact sales@3-Dmed.com for more information.

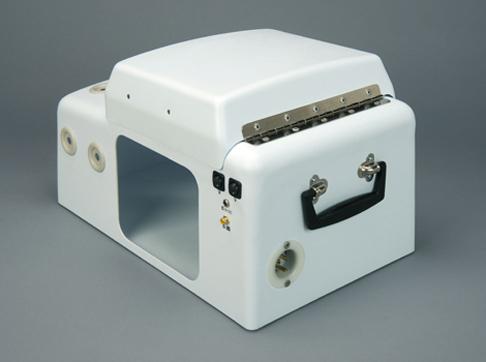

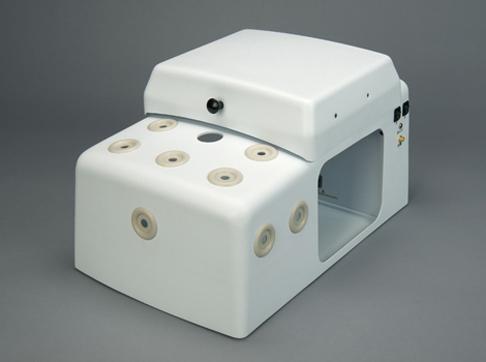

The T5-HD is a complete minimally invasive training system that does not require an additional laptop computer to complete the system like many of our competitor’s trainers. It takes less than a minute to set up and includes a large abdominal/pelvic work area, High-Definition 1080p SimScope™ (camera) and a 12″ (30cm) high-resolution monitor. It is versatile as it can be used to practice basic laparoscopic skills through advanced procedural simulation, including camera navigation for an individual or a team. The SimScope™ can be placed in any of the ports (Most trainers have a single, dedicated scope/camera location). Residents may practice with the T5-HD to acquire the skills incorporated into the FLS modules (approved by FLS). The large pelvic work area has 14 laparoscopic ports with interchangeable grommets (5mm and 10mm) and LED interior lighting. A handle is located on the back of the pelvic work area to facilitate ease of portability. No assembly is required. The T5 Series is designed to facilitate team training that can be used as a one-person laparoscopic practice workstation just as well.

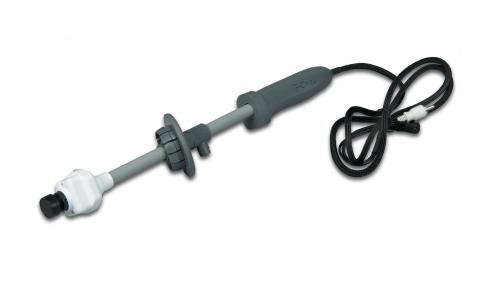

Camera: 0° and 30° SimScope™ mounts in seconds into any laparoscopic port. Ports: 14 laparoscopic ports with interchangeable grommets. Grommets: 5 and 10 mm. Pelvic Box: Large pelvic work area with large side openings for easy placement of MITS Inserts. Lights: Mounted inside the pelvic work area. Monitor: 12″ (30.5 cm) monitor. Dimensions: L 20.5″ x W 13″ x H 11.5″ (L 52cm x W 33cm x H 29.5cm)measurements with monitor down. Weight: 14 lbs. (6.5 kgs.)
Basic laparoscopic skills
Advanced laparoscopic procedures
FLS Skills practice
Individual or team Training
Laparoscopic Camera Navigation (LCN)
Hands-on Skills Training
Residents may practice on the T5 MITS to acquire the skills incorporated into the FLS modules. FLS certification testing must be done at one of the official FLS Test Centers by an FLS proctor using the official FLS Laparoscopic Trainer Box. For more information please visit http://www.flsprogram.org.
