Ultrasound Examination Model "ECHOZY" set

Description

*Kyoto Kagaku products available only in North America

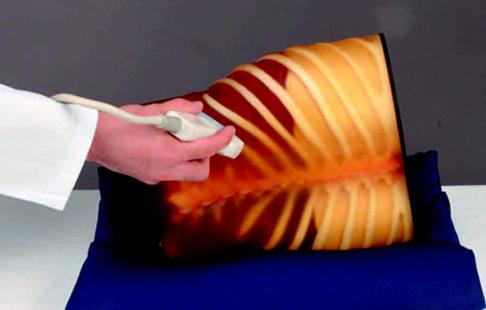

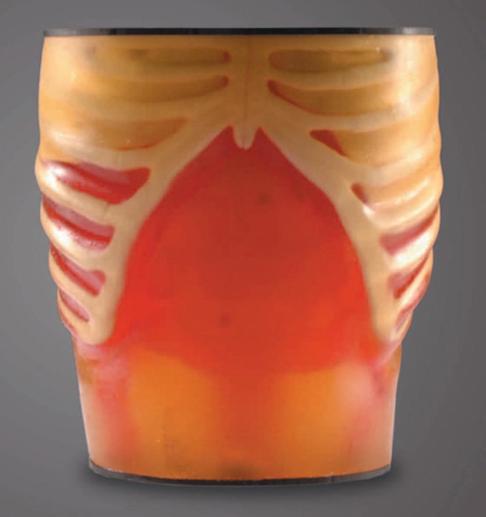

Ultrasound Examination Training Model “ECHOZY” is an upper abdomen organ model with approximate-to-human echogenicities. ECHOZY organs are based on cadaver mold and then modeled to realize right anatomy under ultrasound scanning. The phantom posture is designed to make the depth of the organs from the probe close to clinical setting. Training items include instrumentation and probe manipulation and basics of abdominal sonography, including cross sections, identifying sonographic anatomy and localization of hepati Couinaud’s segments.

Japanese Patent No. 3650096 Project Supervision: Junji Machi, MD., Ph.D. University of Hawaii at Manoa and Kuakini Medical Center.

Features

Inanimate tool for training of a novice to demonstration by an expert.

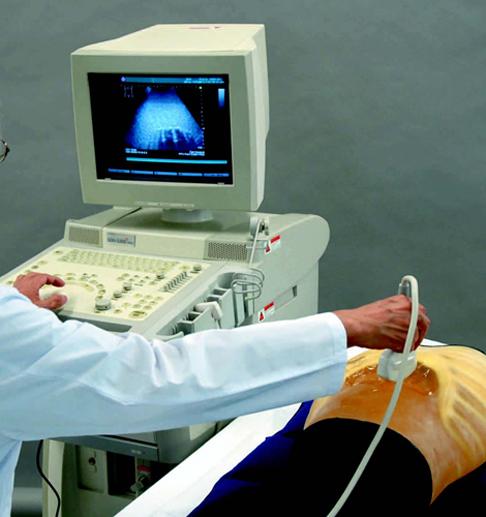

Any ultrasound device with a convex probe can be used.
Detailed hepatobiliary, pancreatic and other abdominal anatomy meeting requirement for excellent training.
Eight Couinaud’s hepatic segments can be localized.
Various simulated lesions including biliary stones and cysts, solid tumors (hypo echoic, hyper echoic and target appearance) in the liver, pancreas, spleen and kidneys.
Near real-size organs, structures and abnormal lesions.
Durable long-life phantom materials.
Four variations of simulated lesions enrich training application.

Size: 7.08 x 9.84 x 11.03H”, 27lbs. (18 x 25 x 28H cm, 12kgs.)
Materials: urethane elastomer

Skills

Ultrasound Examination Training

Options

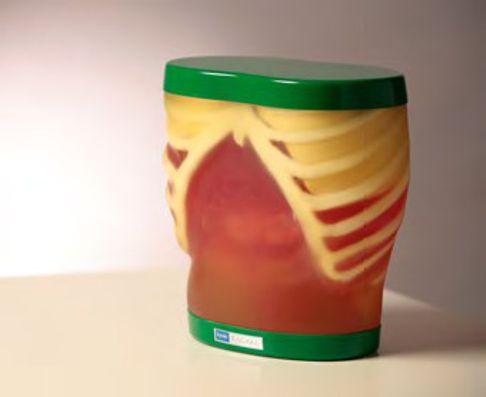

ECHOZY Phantom Only (Kyoto Kagaku US-1, Item code: 41900-010-USA)

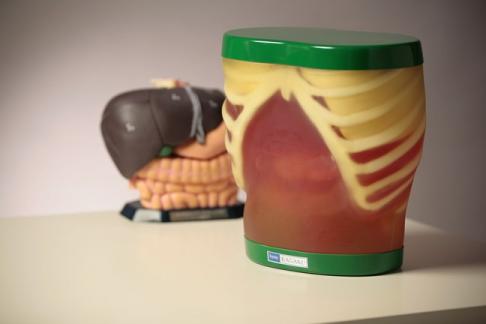

ECHOZY Phantom SET Includes: Abdominal Phantom (ECHOZY) & Antatomical Model (ECHOZOU) (Kyoto Kagaku US-1, Item code: 41900-000)

Specs

Phantom Includes:

Liver (segmental anatomy, portal and hepatic
venous systems, ligamentum teres and ligamentum venosum),
biliary tract (gallbladder, cystic duct, intrahepatic and extrahepatic bile ducts)

Pancreas (pancreatic duct), spleen, kidneys, detailed vascular structures
(aorta, vena cava, celiac artery and its branches, portal vein and its branches,
superior mesenteric vessels, renal vessels, etc)

Pathology includes:

Hepatic lesions (cystic and solid), gallbladder and bile duct stones,
pancreatic tumors (one invading the portal vein),
splenic lesions, both kidney lesions, and left adrenal tumor.

Set Includes:

1 ultrasound abdominal phantom
Embedded organs: chest bones, lungs (no internal structure), heart (no internal structure), liver, portal vein, bile duct, hepatic artery, gallbladder, pancreas, spleen, kidneys, abdominal aorta, inferior vena cava, hepatic veins, spinal column and stomach

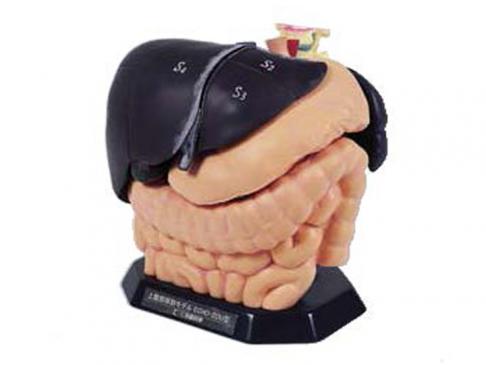

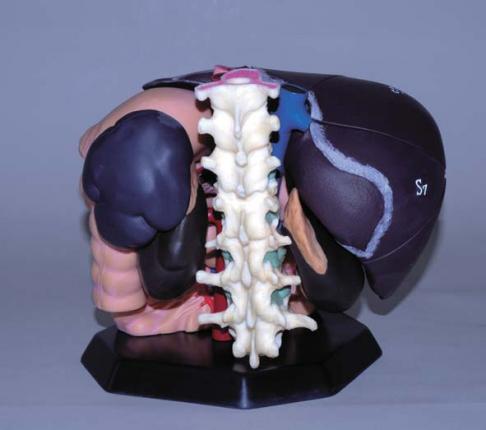

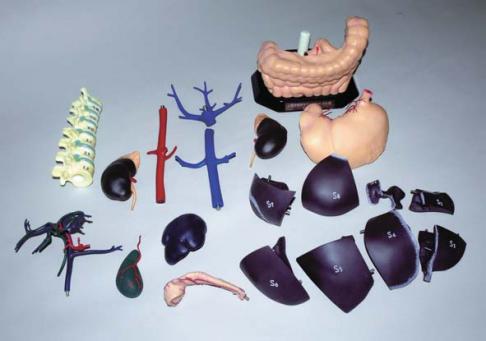

1 internal organ anatomical model ECHO-ZOU
2 silicon sheets
1 set of positioning pillows
1 talcum powder
1 carrying case

*Specifications are subject to change.

Manufacturer -Kyoto Kagaku US-1, Item codes: 41900-000, 41900-010-USA
